BrAPI-Graphical-Filtering

BrAPI Graphical Filtering

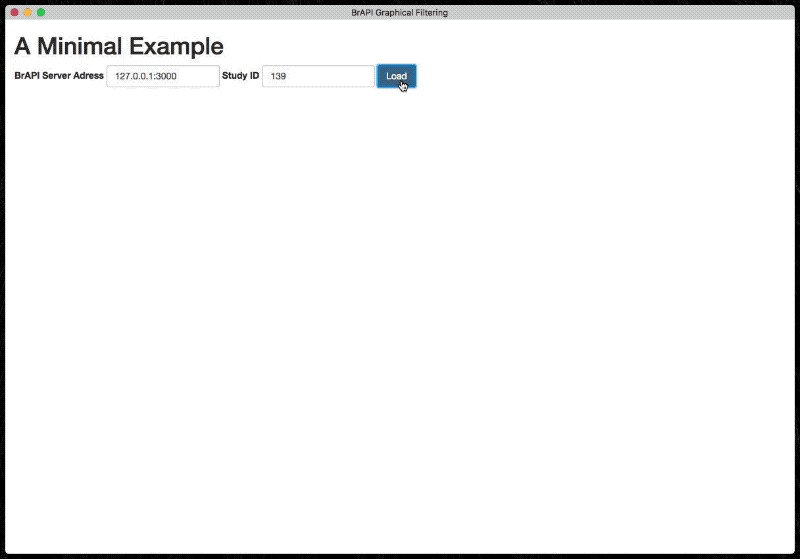

• Try it out here
• Include-ready version can be found under releases.
• Also available via npm: npm install @solgenomics/brapi-graphical-filtering

Usage

The graphical filter exposes a minimal API for initializing and populating the table. It is designed to rely on BrAPI.

Initializing the graphical filter

Use the following snippets (in order) to fully set up a tree.

1. Create a new GraphicalFilter object

    var gf = GraphicalFilter(
        // BrAPI search of observationUnits to be displayed
        BrAPI("https://brapi.myserver.org/brapi/v1").phenotypes_search(myparams),
        // Accessor describing traits for each observationUnit (returns object)
        function(d) {
            var traits = {}
            d.observations.forEach(function(obs){
                traits[obs.observationVariableName] = obs.value;
            });
            return traits;
        },
        // Accessor describing extra columns to display in the table (returns object)
        function(d) {
            return {
                'Accession':d.germplasmName
            }
        },
        // Order to display the above columns in (array)
        ["Accession"],
        // key to group observationUnits by in the table (key value or undefined for no grouping)
        function(d) { // groupBy function
            return d.germplasmDbId
        }
    );


2. Then, draw the filter and table.

    gf.draw(
        // div to draw the filter in
        "#filter_div",
        // table to output filtered data to
        "#filtered_results"
    );


Requirements

• Bootstrap (3.3) (CSS & JS)
• D3.js (4)
• DataTables (1) (JS)
• jQuery (3)

Requirements for the Example

• @solgenomics/brapp-wrapper (For building the example.)
